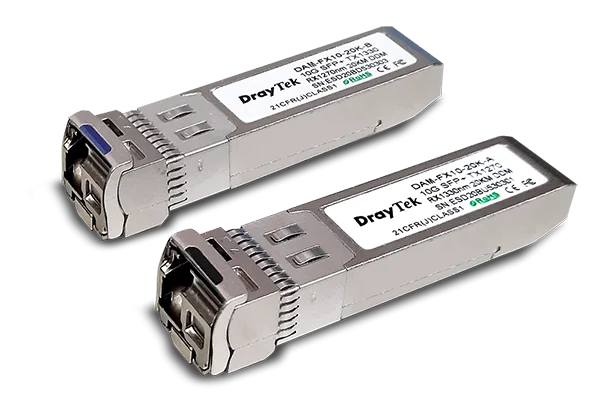

- DAM-FX10-20K-A
- DAM-FX10-20K-B
Řada DAM-FX10-20K
Jednovidové transceivery řady DAM-FX10-20K jsou malé moduly SFP+ typu plug-and-play pro obousměrnou komunikaci po jednom vlákně (simplex). Tyto moduly jsou navrženy pro 10GBASE-LR/LW podle definice IEEE 802.3ae a jsou vybaveny konektorem SFP+ s možností hot-plug.
Modul BiDi SFP+ je speciálně navržen pro jednovidové optické vlákno. Pracuje při jmenovité vlnové délce 1270 nm nebo 1330 nm. Maximální dosah modulu je 20 km.
Moduly lze použít ve VigorSwitch se slotem SFP+ nebo v řadě Vigor 3910 a 3912.
K dispozici jsou dva typy:
Specifikace
| Support media | Single-mode fiber |
| Connector | SFP+ |
| Connector type | Simplex LC |
| Cable type | SMF |
| Cable distance | tot 20km |
| Data rate | 9.95Gb/s to 11.3Gb/s |
| Wavelength | TX1270nm/RX1330nm |
| Transmitter | DFB |
| DOM | Support |
| Protocols | 10GBASE Ethernet, SFF-8431, SFF-8472 |
| Power supply | 3.3V |
| Power consumption | <1watt |
| Operating temperature | 0°C tot 70°C |
| Storage temperature | -40°C tot 85°C |
| Humidity (non-condensing) | 0°C tot 85°C |
| Certificate | RoHS |
Specifikace produktu
Nog geen specificaties ingevoerd!
